- Includes: 1 Aeroquip female 5/8 in conne; Bulb strap 1 Chatleff female 3/4 in conne; 1 Flare 3/8 in connector; Installation instruction; Insulation tape
- Orifice Size: 3 | Orifice Capacity: 10.50 kW/ 3 TR | Outlet & Inlet Size: 3/8" | 1 Way Embossed Flow Direction Indicator | Capillary Tube Length: 800mm/31.5in
- Bimetal connections: Enable easy and rapid soldering without the need for wet cloth or refrigeration pliers
- Compact in design: Featuring small dimensions and lightweight construction, with a hermetic design and a straightway configuration including external equalization
- With a balanced port design, these valves minimize the impact of varying condensing pressures. They also boast a built-in check valve for heat pump applications and an anti-hunt bulb charge optimized for residential A/C needs.
- Applications: Residential air conditioning systems, Rooftop units, Heat pumps, Light commercial air conditioning systems, Chillers, Split systems
Experience the benefits of an embedded laser-welded power element, resulting in:
- Extended diaphragm lifespan
- Exceptional tolerance to high pressures and operational pressures
- Outstanding corrosion resistance for sustained performance

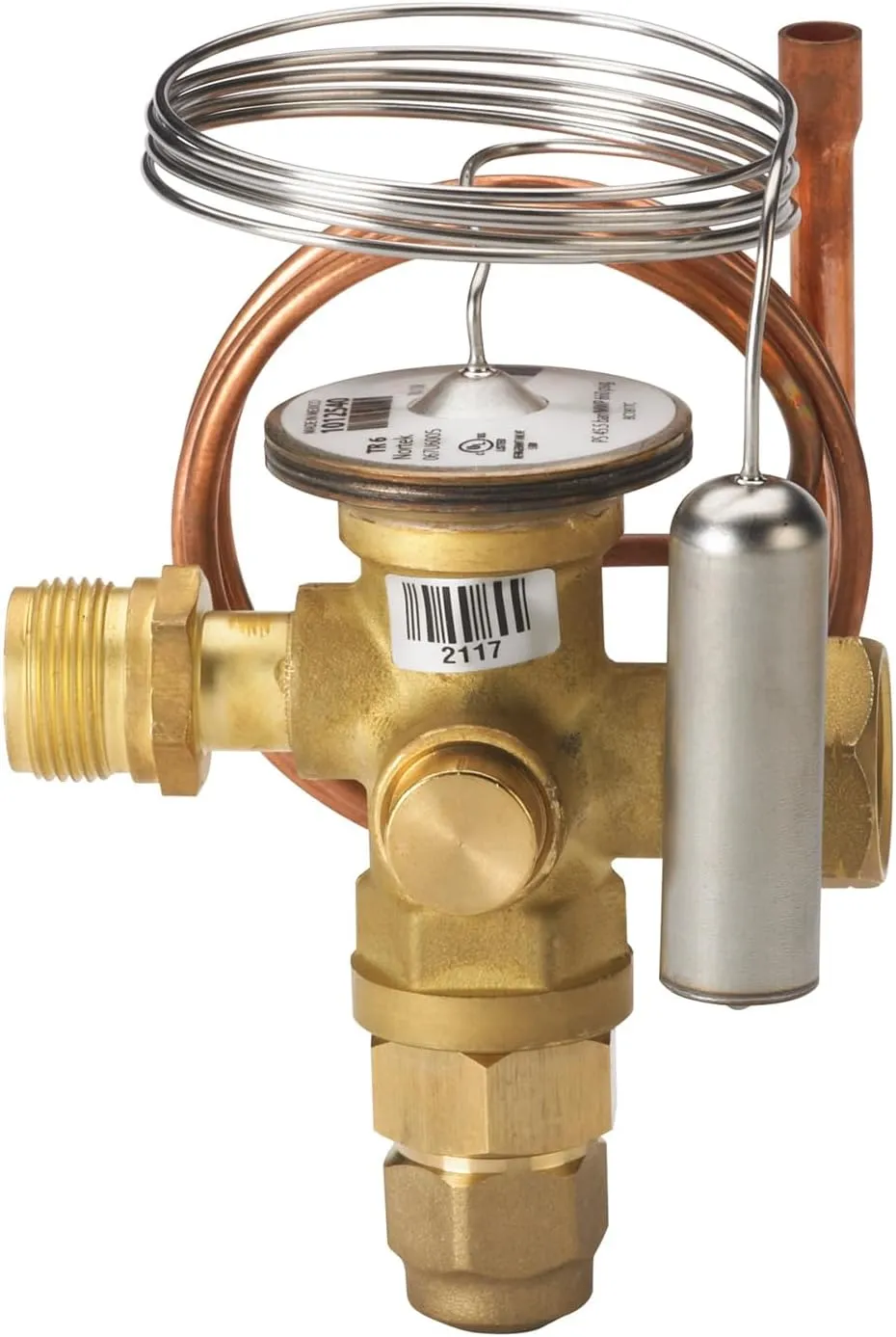

The Danfoss TR6 thermostatic expansion valves are meticulously crafted for use in ducted split (residential) and light commercial air conditioning systems. Featuring a hermetically sealed design manufactured with cutting-edge technology, the TR6 is compatible with all fluorinated refrigerants. Its construction includes a hot-pressed brass body and a power element composed entirely of stainless steel, ensuring durability and reliability.
Each Danfoss TR6 kit includes a valve, aeroquip, chatleff, and 3⁄8-inch flare fittings for evaporator connections, along with insulating tape, a bulb strap, and easy-to-follow installation instructions. With a balanced port design, these valves minimize the impact of varying condensing pressures. They also boast a built-in check valve for heat pump applications and an anti-hunt bulb charge optimized for residential A/C needs.
For assistance in selecting the appropriate Danfoss check valve, we recommend using the Coolselector app—an advanced Danfoss calculation and selection software.
Body material: Brass
Gross weight: 1.1706 pounds
Max. working pressure: 49 bar
Inlet size: 3/8 in
Outlet size: 3/8 in
Orifice capacities [TR]: 3 TR
Adjustable: Yes
Check valve: Yes
Connection materia: Copper
Direction: Straightway
Compatible Refrigerants: R410A
Factory setting: 10.22 bar / 133.5 psig
Temperature [MAX]: 15 degC / 60 degF
Temperature [MIN]: -10 degC / 15 degF
Weight: 0.53 kg
