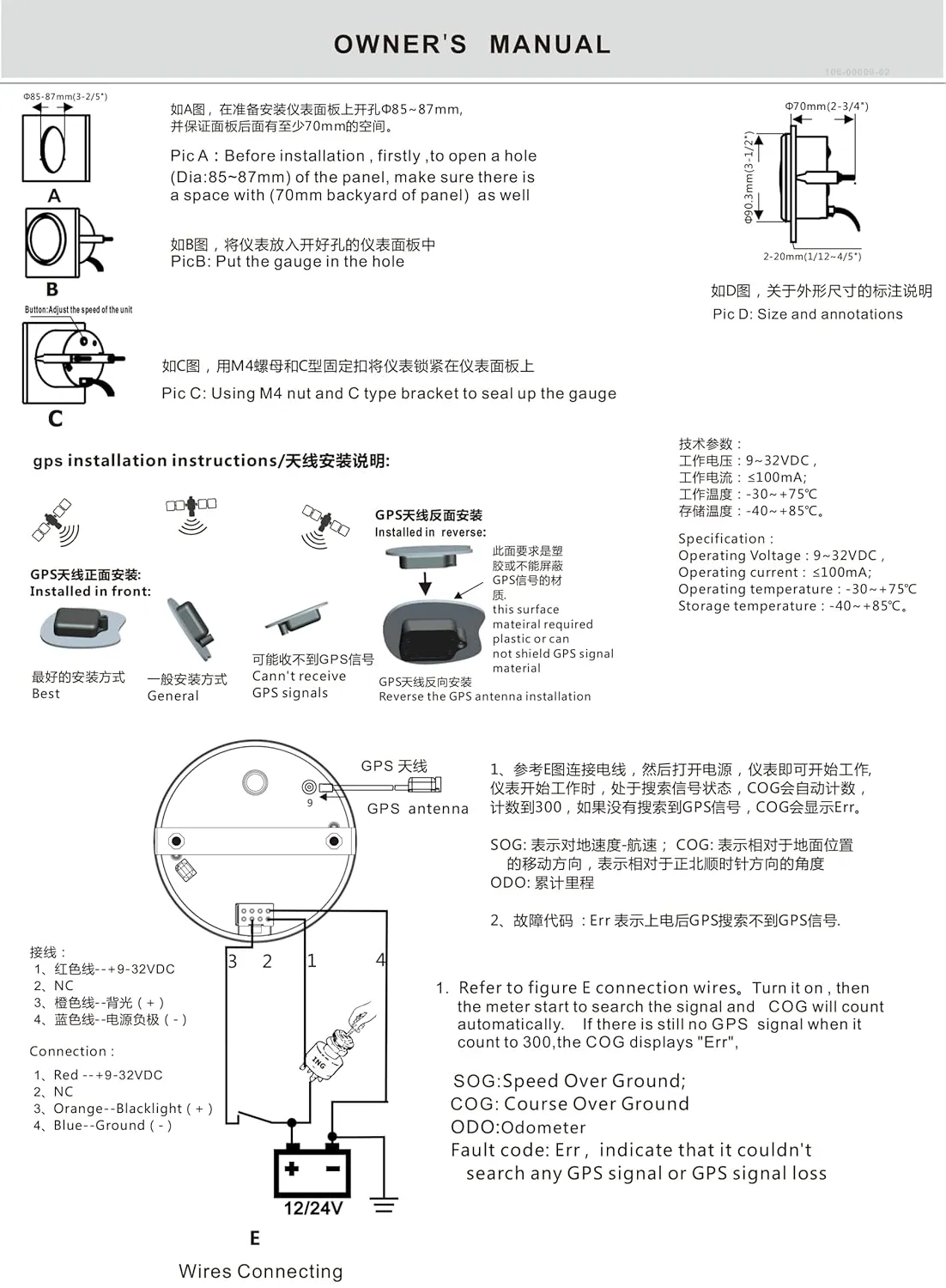

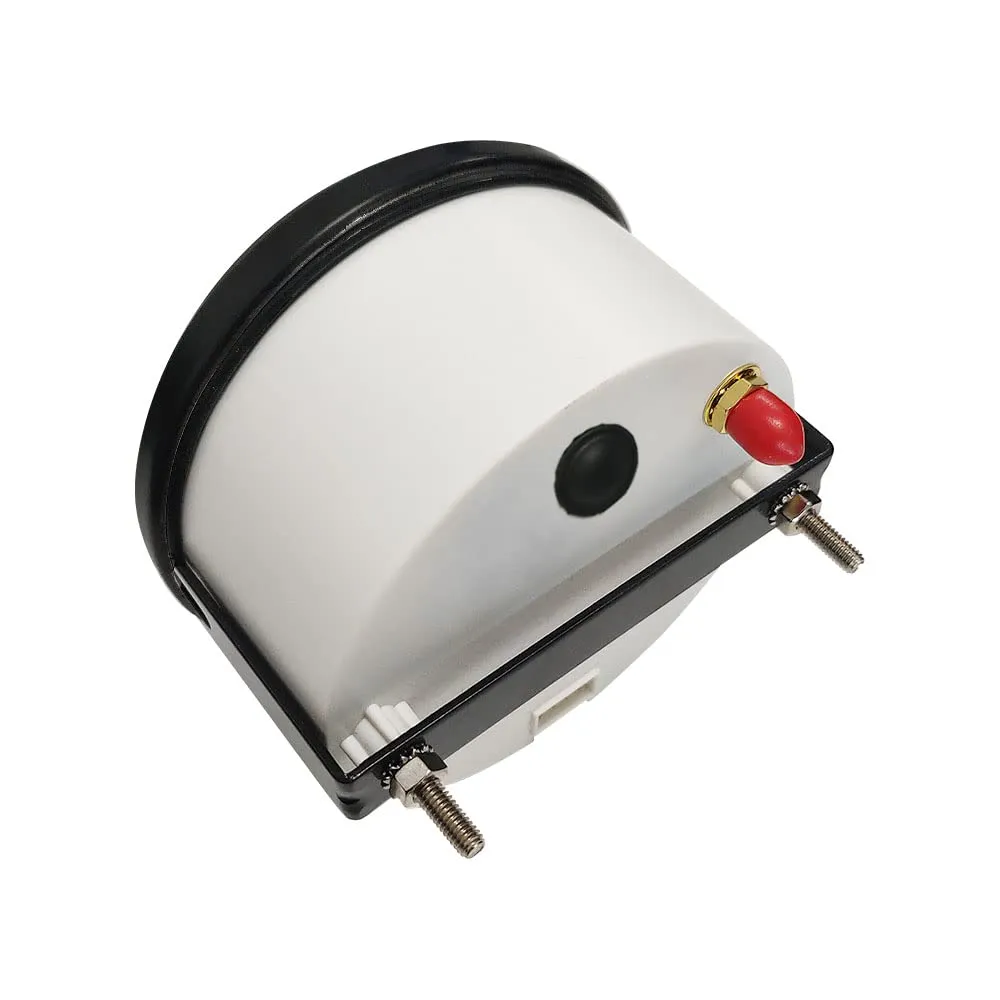

- Cut an 85mm (3 3/8") hole in the panel and allow a clearance of 70mm (2 3/4”) behind the panel to fit the gauge. Put the gauge in the hole. Using M4 nut and C type bracket to seal up the gauge.

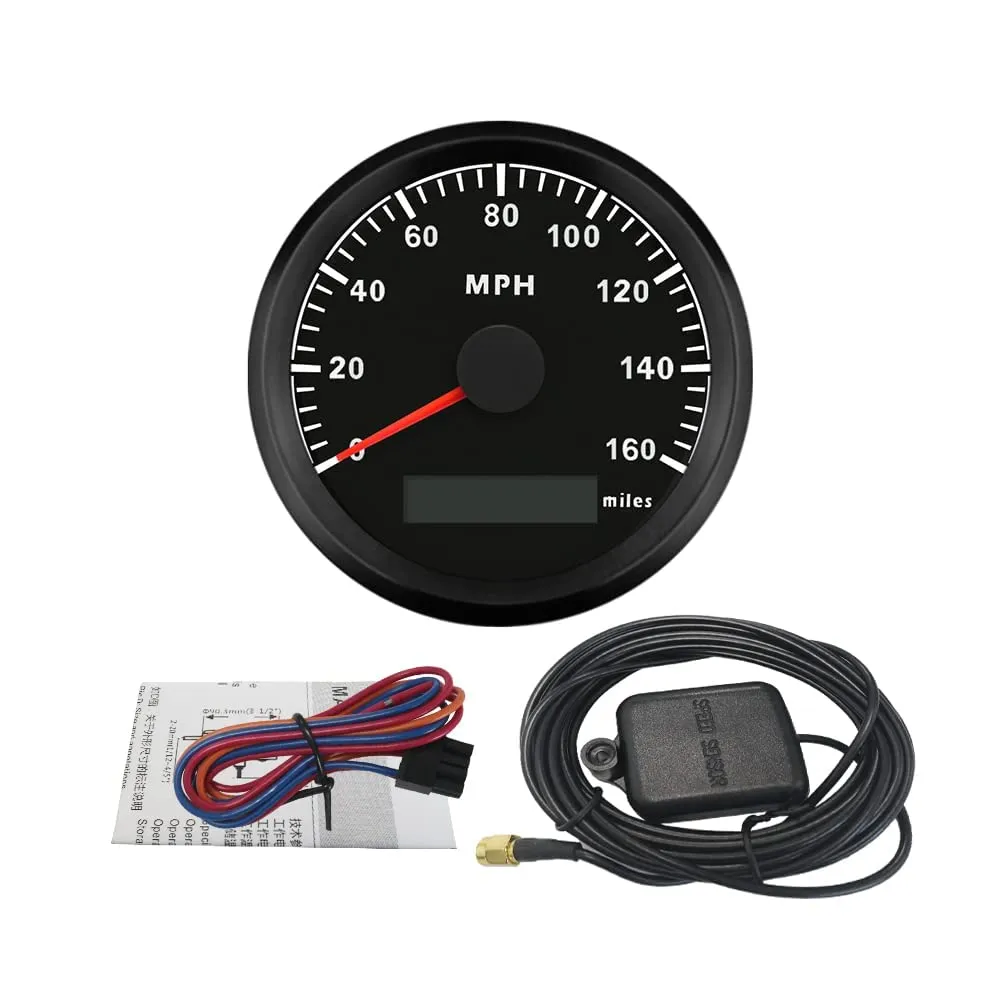

- For the GPS antenna, you should securely fasten it in the flat position, black side upwards, preferably outside (or inside front windscreen) so that it has a clear view of the sky to pick up satellite signal. Connect the antenna cable to socket in the back of the gauge. And do not cut cable.
- It takes about 30 seconds to get signal in the first time, but less than 3 seconds after that. It gets quicker under a clear view of the sky. Sometimes if signal is missing, pls. reconnect all wires and restart it.

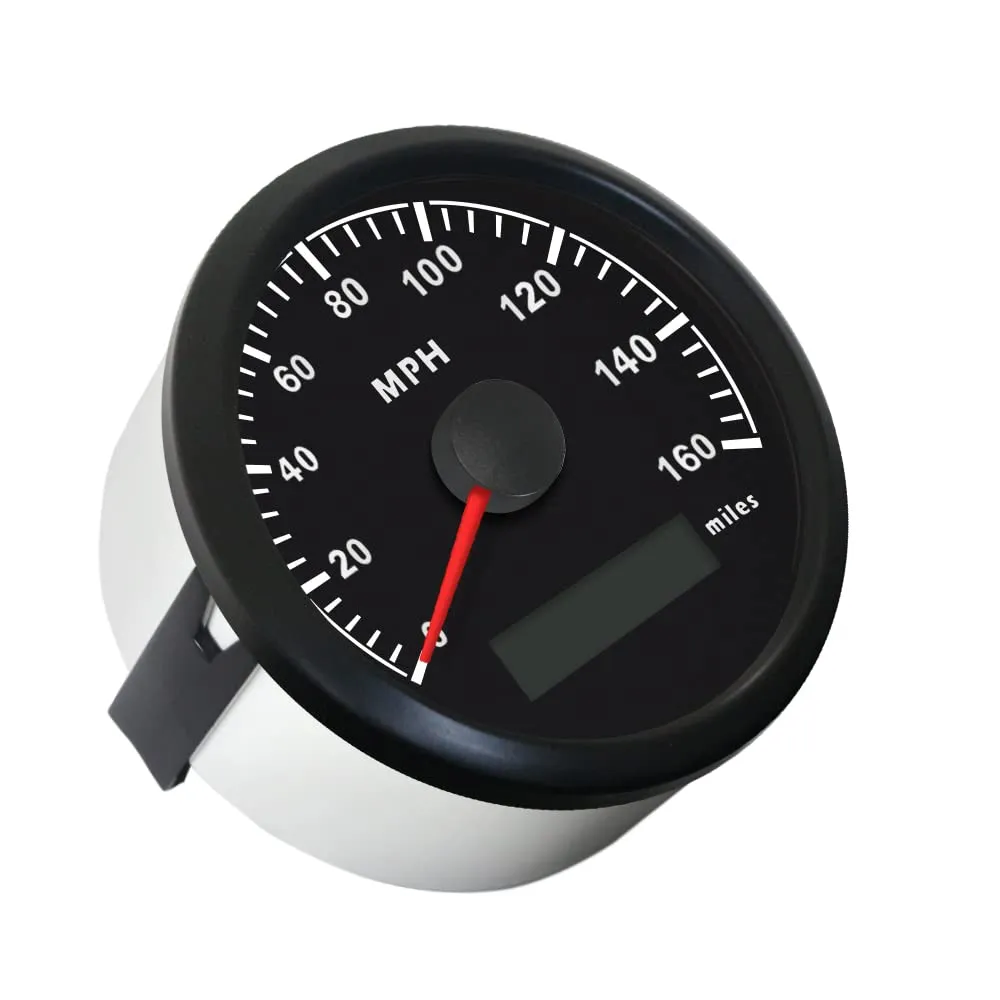

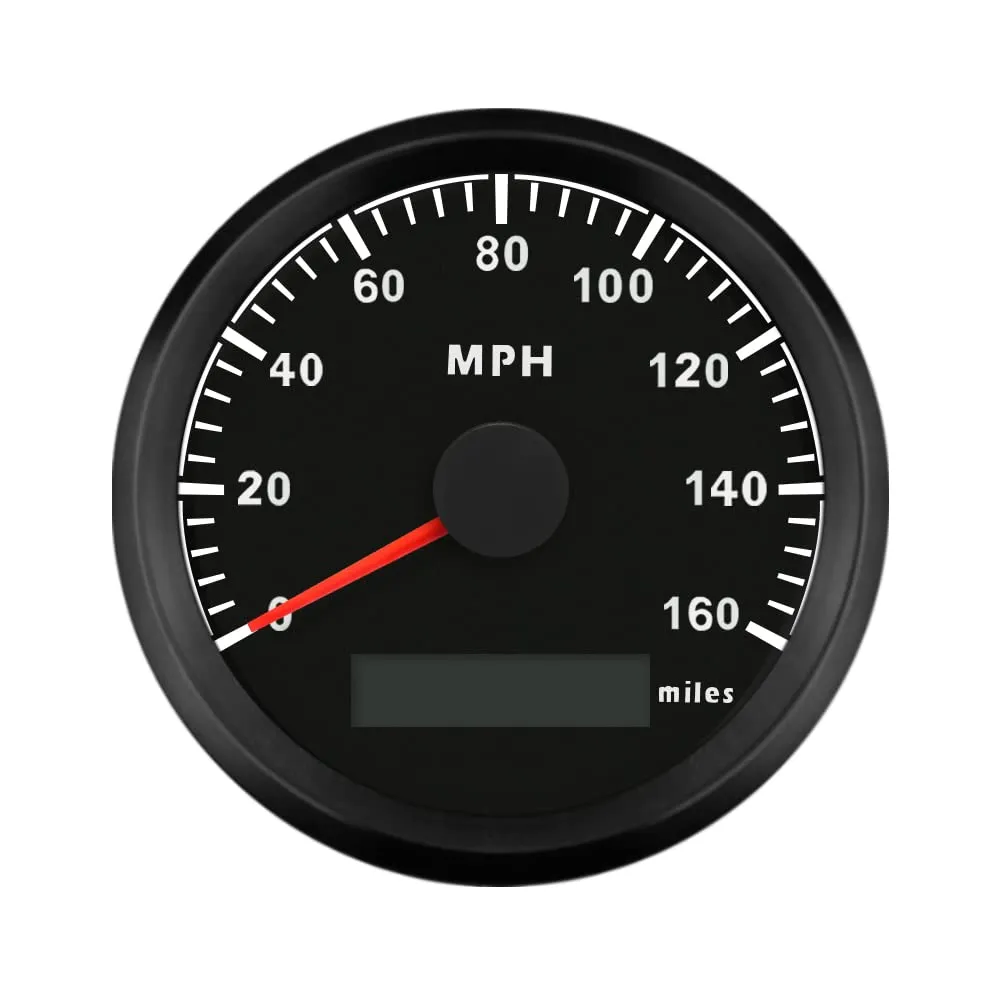

- It shows current speed and odometer(cannot be reset), no trip meter. If you also need trip meter, pls. search for ASIN B07KPHDFDB, B07KPHC1ML or B07KPG7XT3

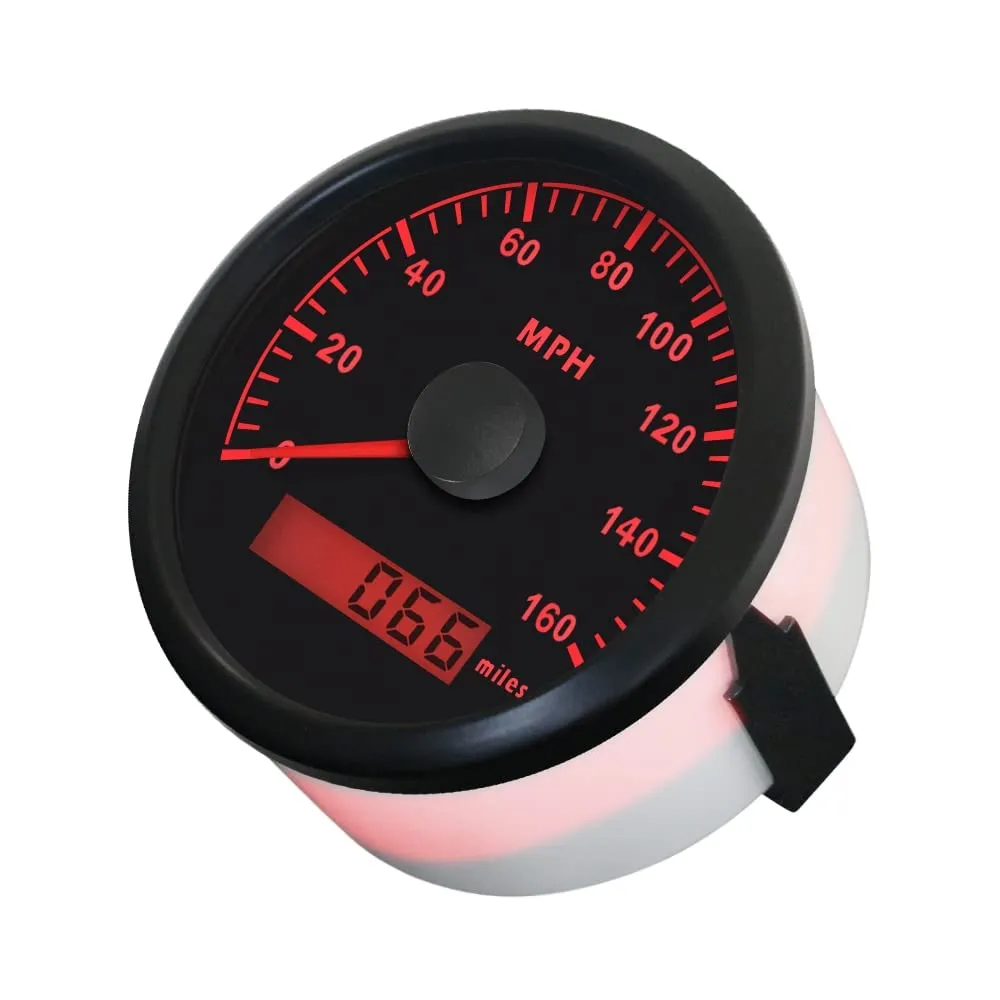

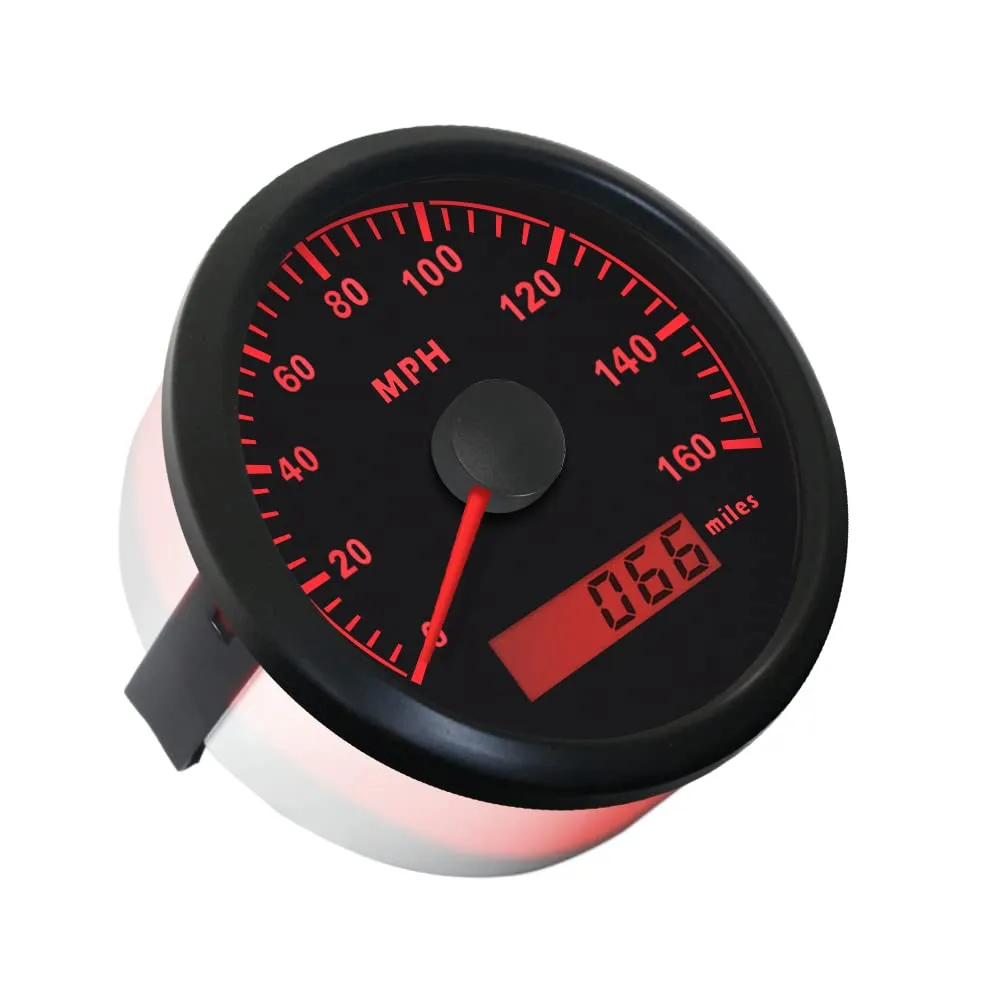

- Red Backlight, 12VDC/24VDC Working Voltage, 100% waterproof and anti-fogging protection
