- Frequency range: 9KHz-1.6GHz (tunable to 9KHz) AC Coupled
- 5.6 inch highlight color display, 640*480 resolution, waveform display clearly.
- Standard spectrum feature. It can analyze the signal time stability, and find out lacunar signal in communication system accurately.
- Strong field strength test function, fit for the test work in transmitter, base station and the antenna coverage site. It can show the density of field strength or power. The user could also calibrate gain or loss by using amplitude offset function.
- Advanced built-in battery management system is adopted. Standard super large capacity-7800mAh lithium battery, and support 6 packs of 18650 battery pack which can keep measurement working in site for over 4 hours.
- Integration USB Host & Device, support USB flash disk memory. Its PC software can achieve the management and storage of testing data.

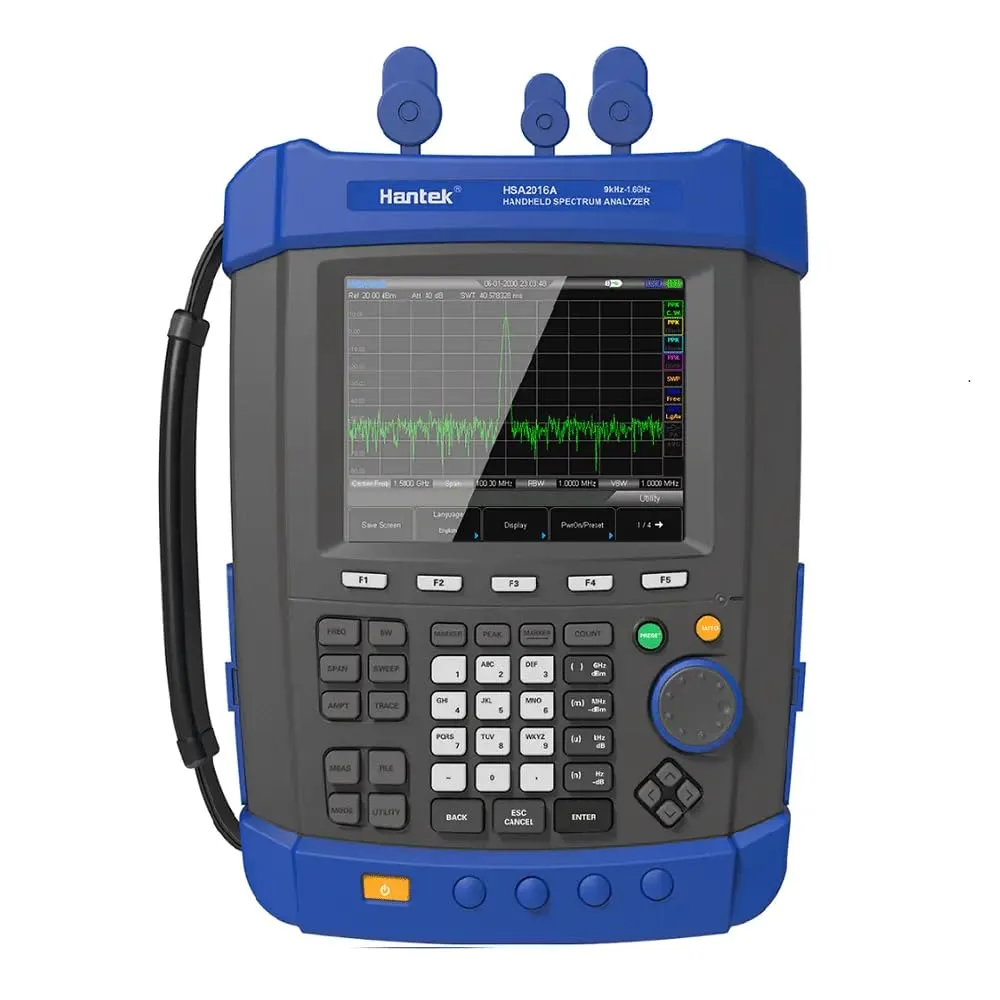

Model:HSA2016A
Frequency Range:9KHz~1.6GHz AC Coupled
Frequency Resolution:1Hz
Reference Frequency:10MHz
Frequency Readout Accuracy:±(frequency indication*frequency reference uncertainty 1%*span 20%RBW marker resolution 1Hz)
Resolution Bandwidth（RBW）
-3dB Bandwidth:10Hz to 1MHz，1-3-10 sequence
Accuracy:±5% RBW=10Hz~1MHz nominal
Resolution Filter Shape Factor:5:1 nominal
Frequency Counter
Counter Resolution:1Hz
Accuracy:± (marker frequency × frequency reference uncertainty counter resolution)
Level Display Range
Log Scale and Units:1 to 10 dB/divisions in 1, 2, 5, 10 dB steps, 10 divisions displayed
Linear Scale and Units:0 to 100%，10 divisions displayed
Scale Unit:dBm，dBmV,dBuV,Watts，Volts
Sweep (Trace) Points:461
Number of Markers:4
Detectors:Normal, positive peak, dample, negative peak, RMS
Number of Traces:4
Trace Functions:Clear/write, maximum hold, minimum hold, average, check，close
Level Measurement Error:±1.5dB(excluding input VSWR mismatch) ;
20~30℃，peak detector, preamplifier off, input signal -50dBm to 0dBm
Feature
Interface Language:English，Chinese，Chinese Traditional
Display Index:5.7 inch，640*480 resolution，64M color LCD display
Temperature Range:Working-10℃ to 50℃，（battery：0℃ to 50℃）
Storage:-40℃ to 70℃，（battery :-20℃ to 50℃）
Relative Humidity:<95%
Weight:2.9kg（with battery），2.6kg（without battery）
Size:260m X 220m X 75m
- Product Dimensions : 8.66 x 2.95 x 10.2 inches; 11.02 Pounds
- Date First Available : October 1, 2020
- Manufacturer : Graigar
- Country of Origin : China
