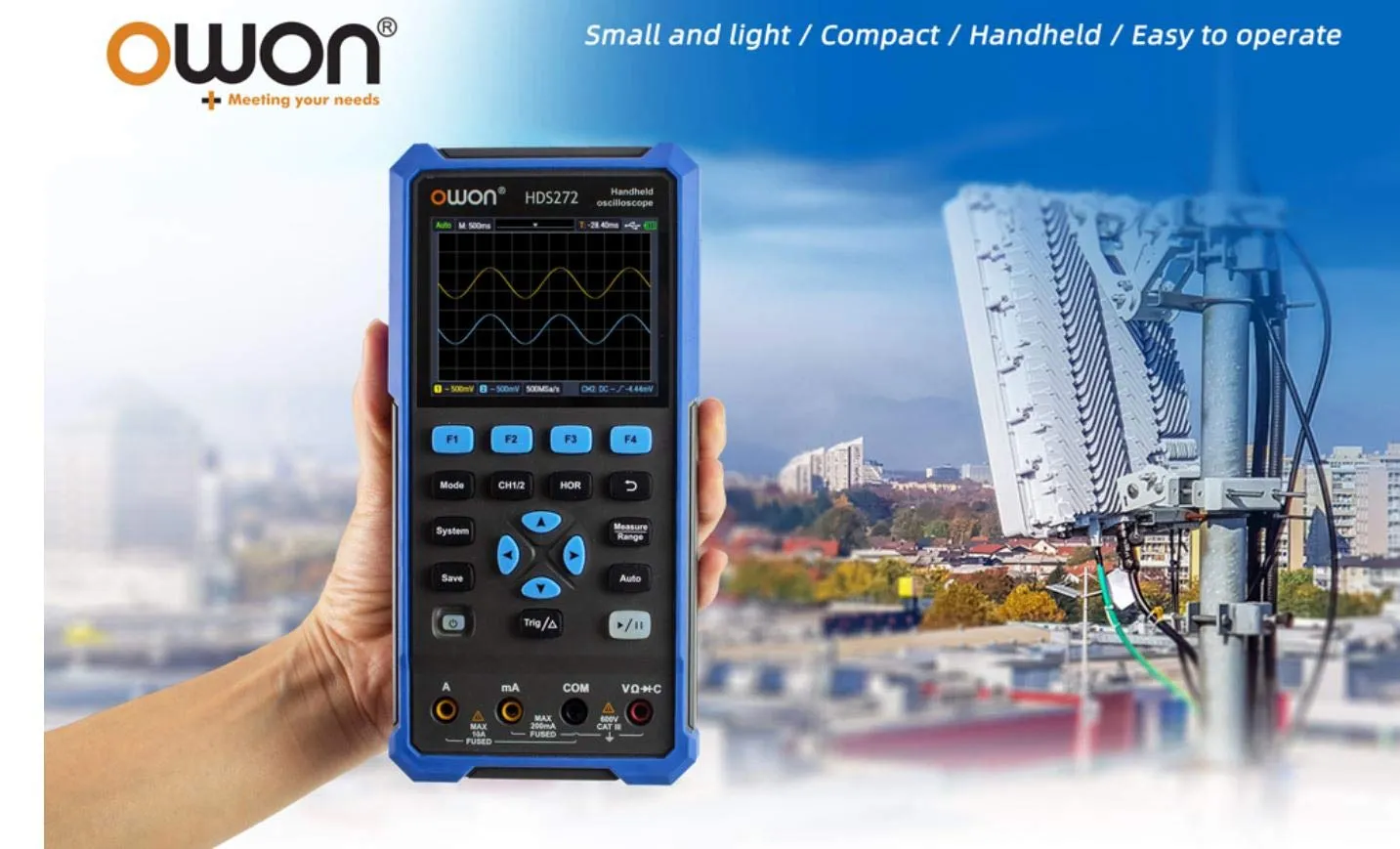

OWON HDS272S 3.5" LCD 2CH Handheld Oscilloscope 70MHz Bandwidth 20000 Counts Multiumeter OSC DMM 3 in 1 Suitable for Automobile Maintenance and Power Detection
Oscilloscope multimetermultifunction in one
3.5-inch high-resolution, high-contrast color LCD display, suitable for outdoor use
18650 lithium battery, comprehensive power consumption ≤3W, can work continuously for about 6 hours
USB Type-C interface, support power bank, support PC software connection
Self-calibration function
SCPI supported, facilitate secondary development
Sample Rate 125MSa/s Acquisition Model Normal, Peak detect Record Length 8K Display 3.5 -inch LCD Waveform Refresh Rate 10,000 wfrms/s Input Coupling DC, AC, and Ground Input Impedance 1 MΩ 2%, in parallel with 1 6pF 10pF Probe Attenuation Factors 1X,10X,100X,1000X Max. input Voltage 400V (DC AC, PK PK, 1MΩ input impedance) (10:1 probe attenuation) Bandwidth Limit (typical) 20MHz Horizontal Scale 5ns/div - 500s/div, step by 1-2- 5 Vertical Sensitivity 10mV/div - 10V/div Vertical Resolution 8 bits Trigger Type Edge Trigger Modes Auto, Normal, single Automatic Measurement Frequency, Period, Amplitude, Max, Min, Mean, PK-PK Cursor Measurement △V, △T, △T&△V between cursors Communication Interface USB Type-C Package includes:
1 x Main device
1 x Bag
1 x Probe
1 x Power Plug
1 x Probe Adjust
1 x USB Cable
2 x Multimeter Leads
1 x Instructions
1 x CD Rom
1 x BNC to Alligator Clip
Note:
We will send you a plug adapter according to your country.

• Package Dimensions ‏ : ‎ 9.53 x 6.46 x 3.62 inches; 2.2 Pounds
• Date First Available ‏ : ‎ February 11, 2021
• Manufacturer ‏ : ‎ LILLIPUT
