- [POWER PACKED MOTOR KIT] Experience superior RC helicopter performance with the comprehensive 2217 KV1250 motor kit , including a high speed 8060 propeller , responsive steering engine , and a reliables 40A XT60 ESC .
- [PRECISE SG90 9G MICRO SERVO] Featuring the SG90 9G micro servo , weighing only 9g with a of 1 . 5 1 . 7kg/cm (4 . 8V 6V) , ensuring accurate control and stability during fly .
- [VERSATILE 40A ESC] Equipped with a 40A ESC with security arming function , throttle calibration , and support for various program methods , compatible with lithium batteries for customized performance .
- [COMPREHENSIVE ] apply to from comprehensive mechanisms , including low pressure cutoff , overheat , and throttle semaphore loss , ensuring a safe and reliables manipulation .

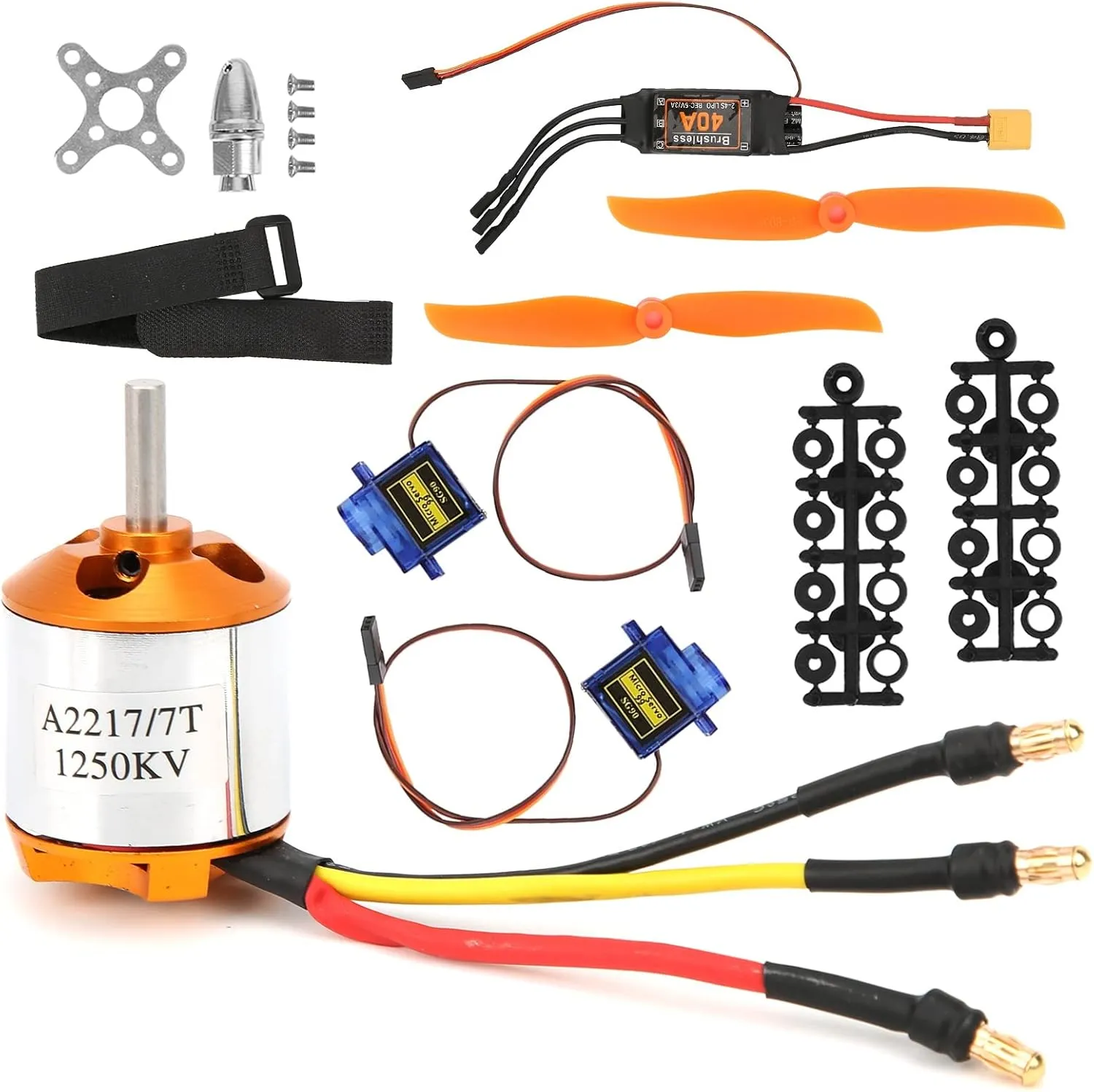

- [ALL IN 1 MOTOR KIT] This kit includes a powerful 2217 KV1250 motor , efficient 8060 propeller , responsive steering engine , and a 40A XT60 ESC , providing all the components you need for enhanced RC helicopter performance .
performance .
Specification :
Item Type : 2217 Motor Kit
Material : Metal Plastic
SG90 9g Servo Parameters :
Size : Approx . 21 . 5 x 11 . 8 x 22 . 7mm/0 . 85 x 0 . 46 x 0 . 89in
Weight : Approx . 9g/0 . 32oz
No Load Speed : 0 . 12s/ 60 Degrees (4 . 8 V)
Locked Rotor Torsion : 1 . 5 1 . 7kg/cm (4 . 8V 6V)
Working Temperature : 30 60℃
Dead Zone Setting : 5 Microseconds
Working Voltage : 4 . 8V 6V
2217 Motor Specifications :
Size : Approx . 27 . 8 x 32mm/1 . 1 x 1 . 3in
Shaft Diameter : Approx . 4 mm/0 . 16in
Kv : 1250kv
40A ESC Specifications :
Plug : XT60
Continuous Current : 40A
Peaking Current : 55A (10S)
Power Input : 2 4 Lithium Batteries (Not Included)
BEC Output : 5V at 3A (Linear Regulator Mode Linear Mode)
Maximum Speed : 210 , 000 Rpm for 2 Pole Motor , 7000 Rpm for 6 Pole Motor , 35 , 000 Rpm for 12 Pole Motor
Application : Suitable for RC remote control helicopter
Package List :
1 x Motor
2 x Propeller
2 x Steering Engine
1 x ESC(Not Included Battery)
1 x Motor Base
1 x Coniform Head
6 x Servo Arm
1 x Tie
10 x Screw
2 x Rows of Propeller Washer
