- t Is recommended to seek professional mechanics for installation and use.
- Compatibility: Suitable for 4-stroke F 50H, 60A/C/F 50, 60 P outboard engines, suitable for multiple models, providing wide compatibility.
- Rich accessories: Contains water pump repair kit, filter, oil filter, thermostat, etc., to ensure comprehensive maintenance of your engine.
- Professional design: The water pump impeller has a 6-blade design to provide optimized water flow, enhance cooling effect, and improve engine performance.
- Accurate size: The impeller outer diameter is 51.80 mm and the inner diameter is 18.00 mm, ensuring consistency with the and easy installation.
- : All components are made of to ensure stability and reliability in long-term use and increase engine life.
- Complete solution: Contains core components such as water pumps, , thermostats, etc., providing one-stop repair services to simplify maintenance processes.
- Manual measurement of weight display, with slight deviation.
Due to different production batches, there may be slight differences in appearance and color of the product.
Please review all the pictures and compare them with your second-hand parts to ensure they fit or you can contact us to confirm the size.

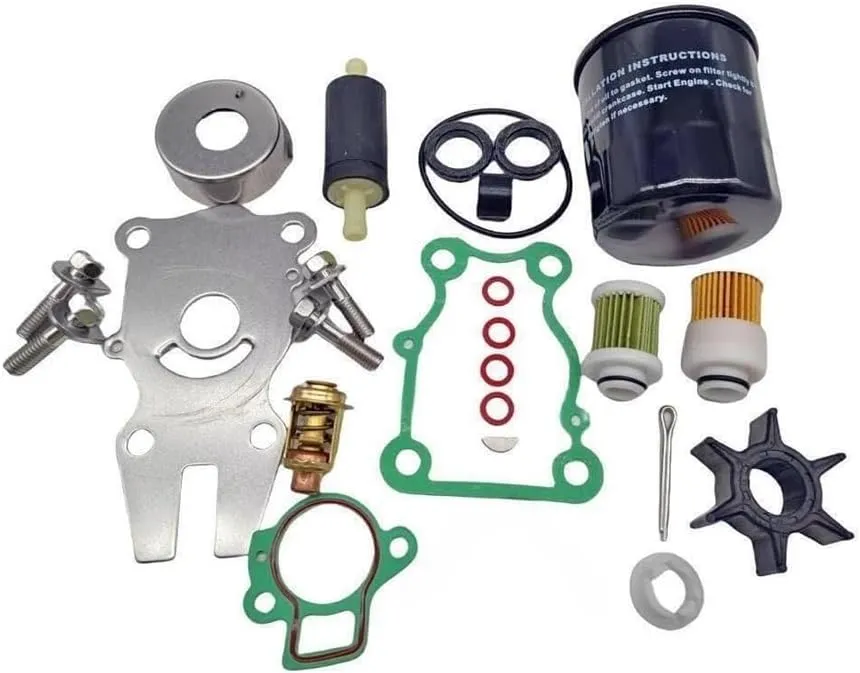

Outboard Repair Kit with Filter Compatible Engines 4-Stroke F 50H 60A/C/F 50 60 P 63D-W0078-01 18-3434
No. piece: 6
Depth /Height/ Width: 18.56mm
Outer/External impeller diameter: 51.80 mm/ 2.04 inch
Internal shaft insert/hub diameter:18.00 mm/ 0.71 inch
Package Include
Kit Contents:
1 x Water Pump Repair Kit 63D-W0078-01
6H3-44352-00 Impeller
63D-44323-00 Plate, Wear
63D-44322-00 , Insert
63D-44316-00 Gasket
93210-59MG7 O-ring
90280-03024 Key
63D-44312-00 Cover, Water Pump Housing
663-44366-00 Grommet
90119-08M15
1 x 6D8-WS24A-00 Filter
1 x 6C5-24251-00 Filter
1 x 68V-24563-00 Filter
1 x 5GH-13440-60 Oil Filter
1 x 66M-12411-01 Thermostat 18-3541
1 x 62Y-12414-00 Gasket
4 x 90430-08020 Drain Gasket
1 x 91490-30025 Cotter Pin
Engine Position : Outboard
Engine : 4 Stroke
