- Works with most popular handheld radios. Multi- LED display 2 radio status , And controller Battery Level.
- Real time duplex repeater with link radio. Allows user to change the DTMF remote control password by radio.
- Operates on both built-in Li-ion battery 72 hours long life operation.
- External DC 5V power supply. Professional manufacturer low power consumption.
- Two mode select. Included 2 x 2 pin of 46-k Connect Cable
The SR-629 is a multi-function and cheaper device that connects any handheld or mobile radio.
By equipment and so on our assemble the build, the new generation trunk-line board, the internal structure design are finer, the outward appearance is more attractive.
Beside scan provide a the basic repeater function which has following the receiver transmitter, furthermore has the Simple connection provides the more ideal 2-way radio conversation region for you, causes you maintains the relation in the bigger operating region.
When the radio units are connected, the received signal on a radio unit will be real time transmit on the other radio unit. e.g. VHF/VHF, UHF/UHF, VHF/UHF or UHF/VHF modes
Mode 1: When Radio A is RX, control to Radio B will TX.
When Radio B is RX, control no Function
Mode 2 : When Radio A is RX, control to Radio B will TX.
When Radio B is RX, control to Radio A will TX.
The purpose can be done in two different places and using different frequency bands intercom, through our mutual communication relay station.
This is a radio cross band duplex repeater controller. It is an easy of operation and cost effective and highly flexible platform for setting up bi-direction cross band duplex repeater with mobile radio and handheld radio.
The SR-629 has 2 audio ports input and out , they are used to connect with mobile and handheld radio. Multi-LED display 2 of radio status , and build-in battery Level

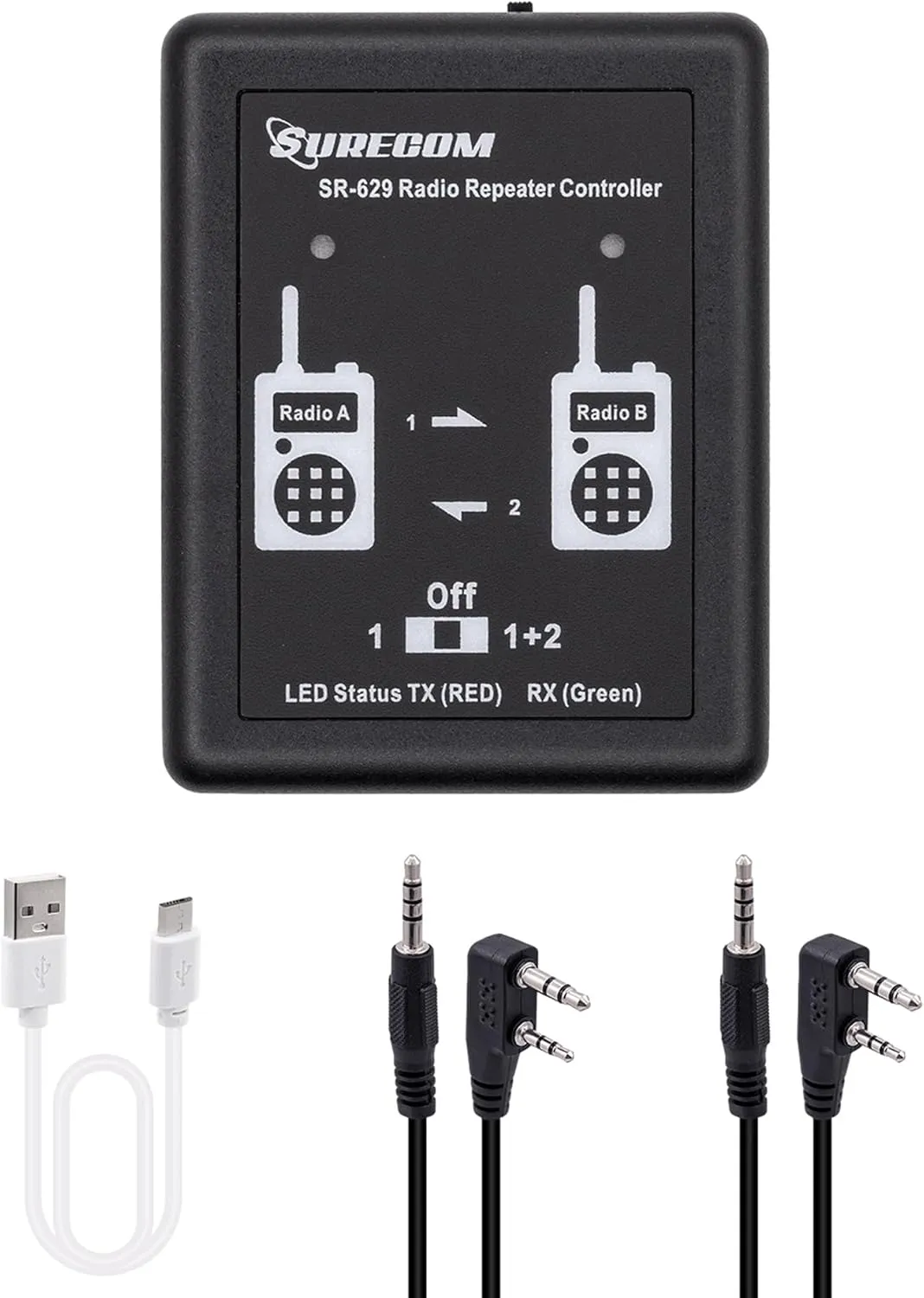

Package Contents
1x SR-629 Duplex Repeater Controller
2x K1 plug Cable
1x English User Manual
1x USB charger cable
1x USB AC adapter 100-240V
