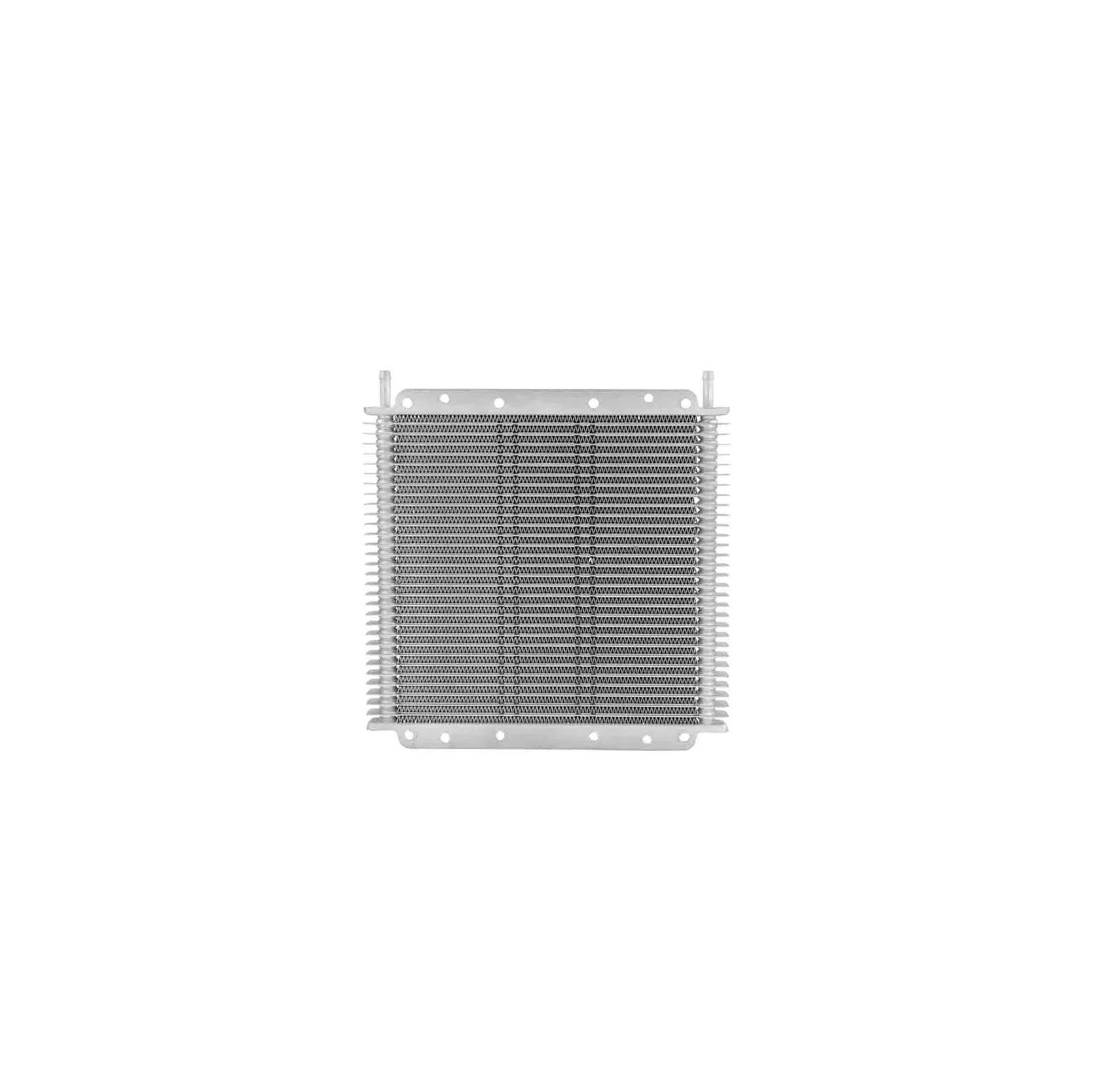

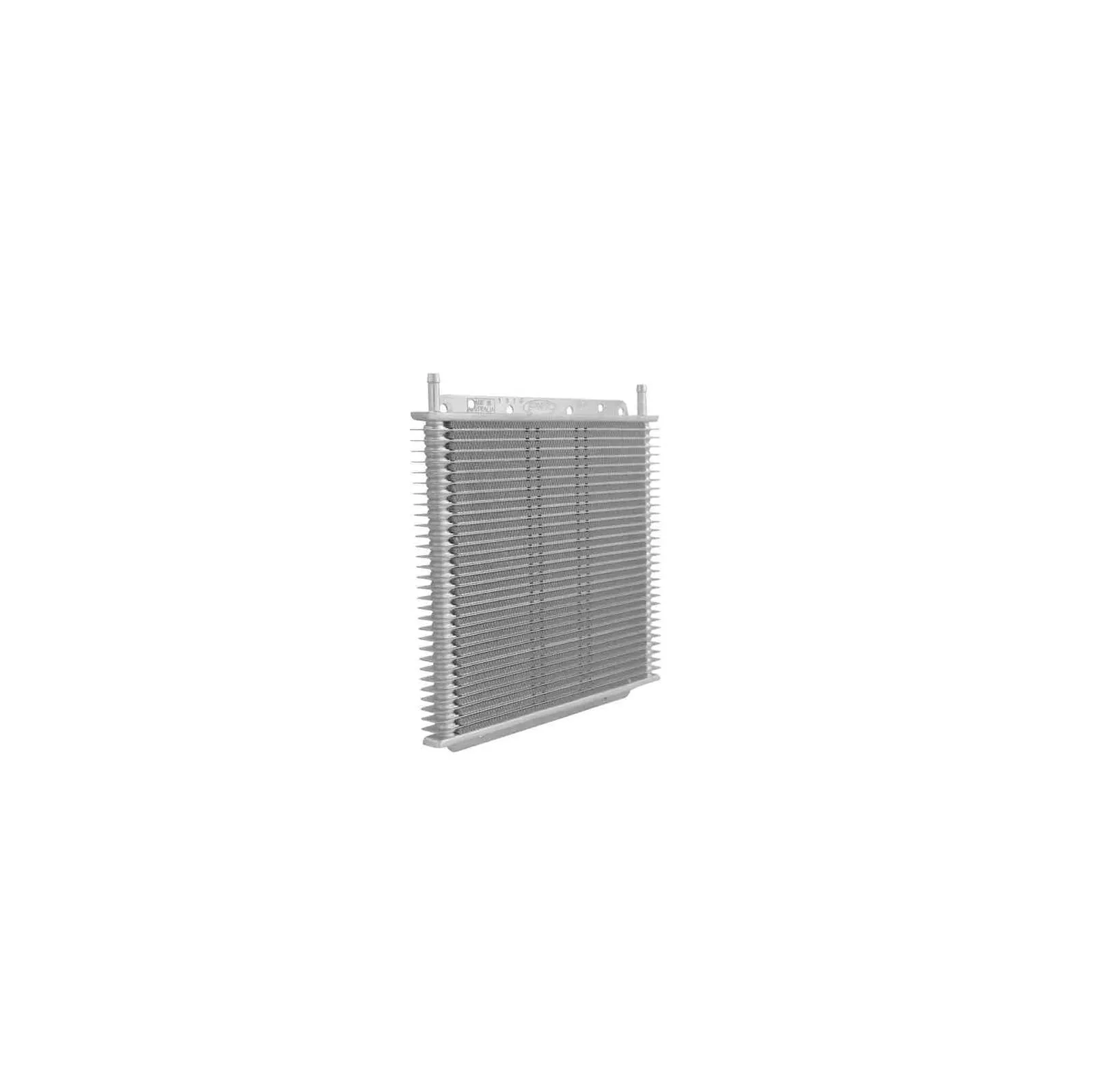

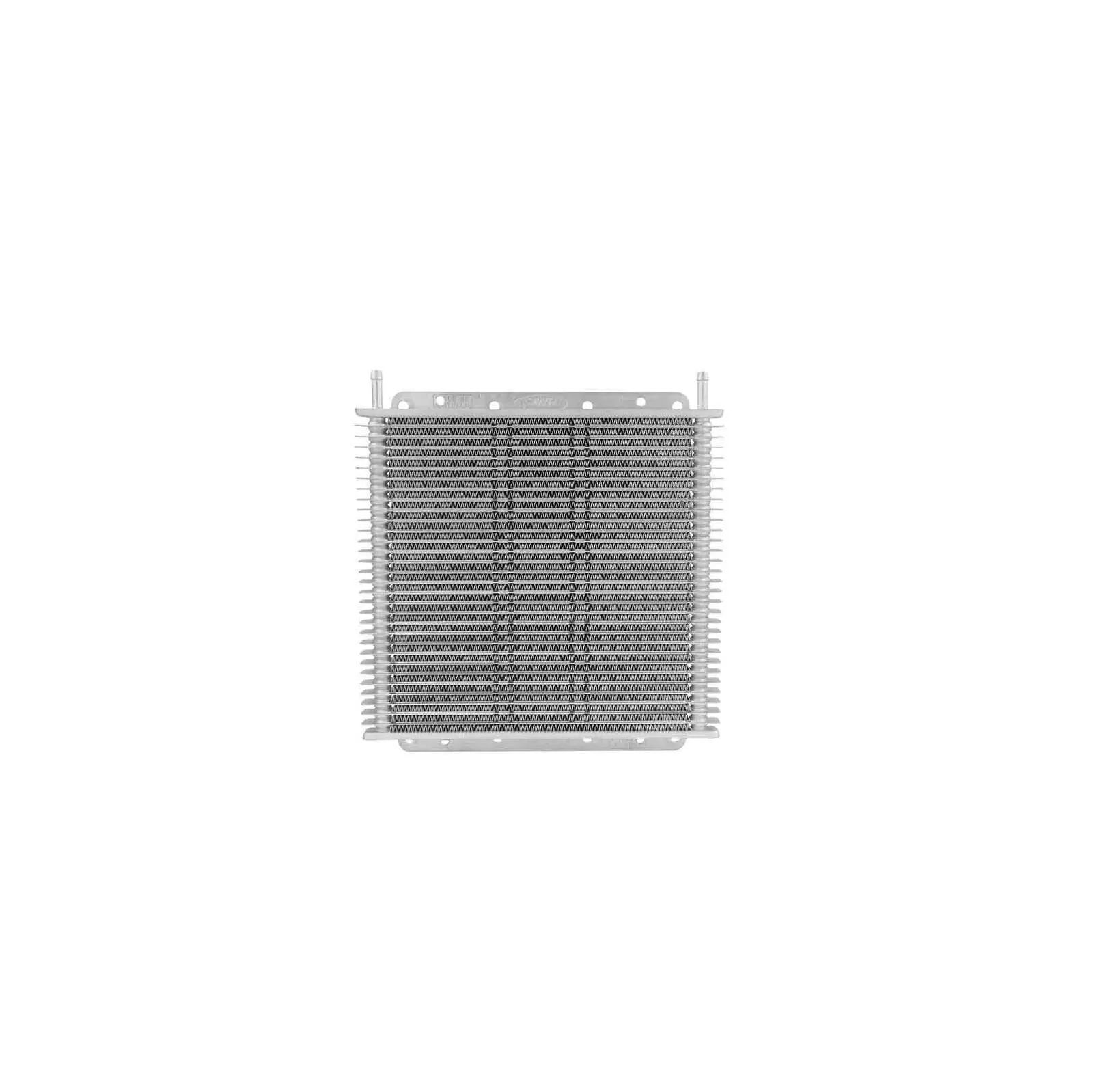

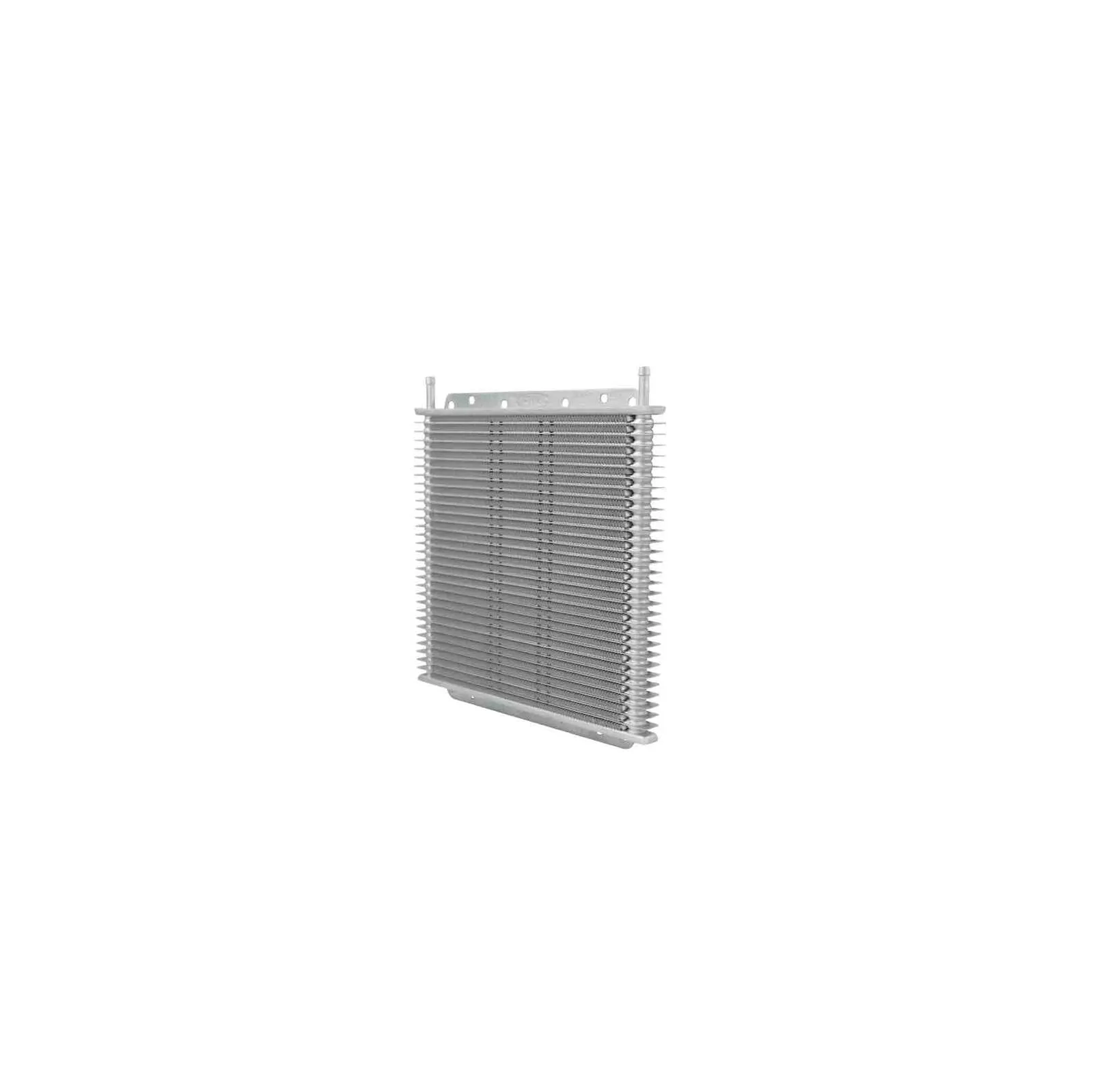

Universal Trans Oil Cooler 280 x 255 x 19mm (5/16" Hose Barb) HD Suits 11" SPAL Fan

PRODUCT DETAILS

• Universal fitment for easy installation
• Kits contain the necessary mounting hardware
• High heat transfer
• Low-pressure drop
• Suitable for up to 10-tonne gross vehicle weight and towing ratings up to 4.5 tonne
• State-of-the-art controlled atmosphere brazing process
• Pressure tested and guaranteed (200psi burst rating)
• 1 Year-manufactured warranty
• 100% Australian made

PWR can custom make to your requirements. Please let us know if you would like thermo fan mounts, fan shroud, temp switch bosses, in-tank auto cooler, external trans cooler mounts, ground welds, machined logo etching or any other custom configuration. Call us today on 07 55 471 600 or email [email protected] for a quote.

SPECIFICATIONS

• Aluminium
• Bare
• 280 x 255 x 19mm
• Plate and Fin
• 5/16” Hose Barb Fittings

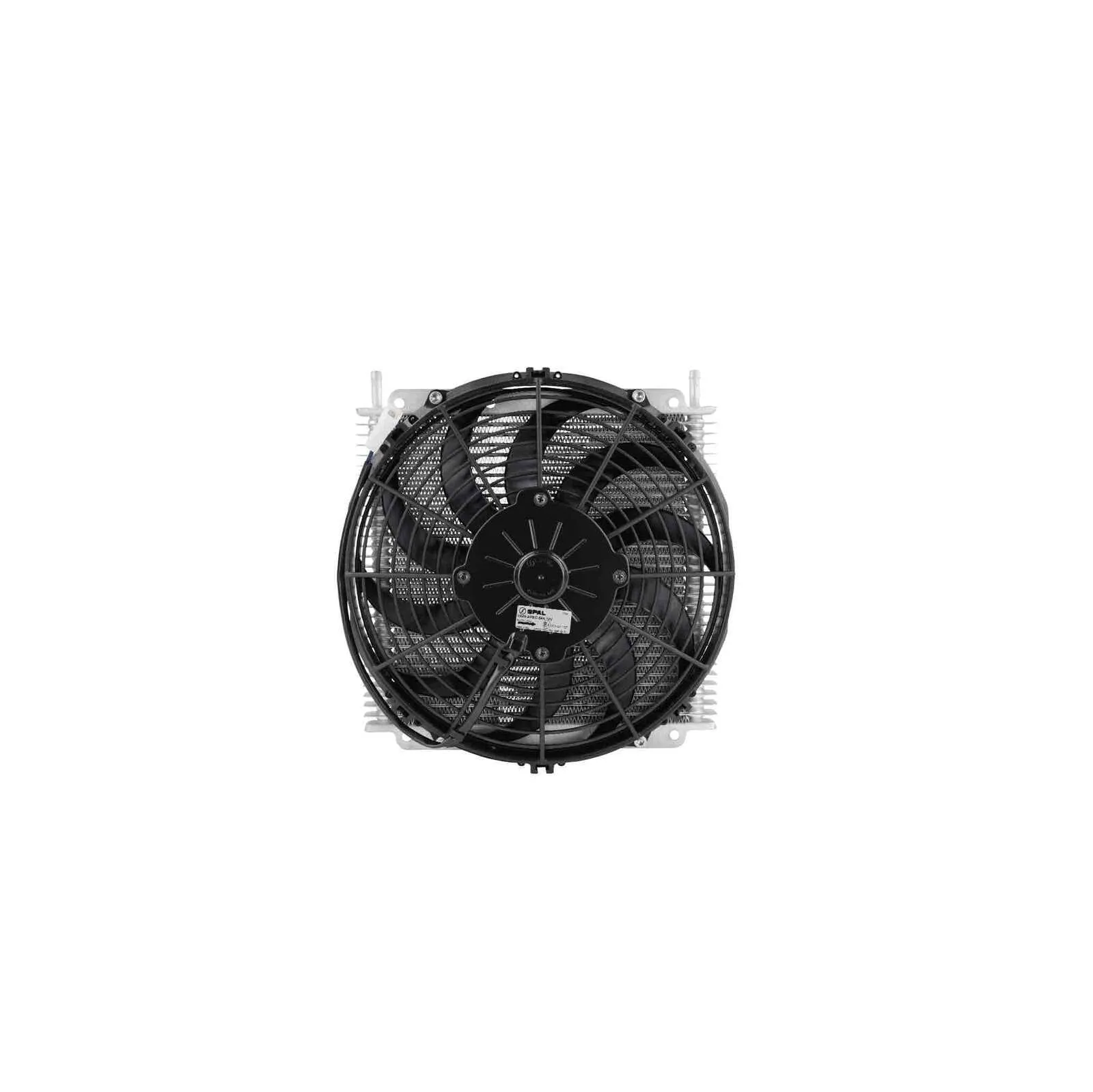

• 11” SPAL Fan Mounts
• Fan Sold Separately

WHAT'S INCLUDED

• 1 x Transmission Cooler

COMPATIBILITY

• Universal Heavy Duty

PWR’s patented plate and fin transmission oil coolers are made from 100% aluminium construction which allows the cooler to be made strong, lightweight and compact while offering high heat transfer and corrosion resistance. The plate design turbulates the oil flow and in conjunction with the unique louvered fin design provides highly efficient cooling with low-pressure drop. Manufactured with a 19mm core, these coolers are perfect for automatic transmissions, power steering and differential cooling for race and road applications. Offered with 5/16, 3/8” or 1/2" push-on hose barbs or Dash -6 AN male threaded fittings. 5/16” and 3/8” can be ordered in kits containing hose, hose clamps and mounting hardware. Custom fittings for specific applications such as thermo switch bosses for thermo fan operation can be special ordered.

ADDITIONAL ITEMS:

• SKU: PWAC11SK - 11" Fan Skew Blade Pull 12V (779CFM) (52mm Deep) - Price: $310.00
• SKU: PWA6529 - Fan Legs x4 (Plastic) - Price: $22.00
• SKU: TFS133 - Thermo Switch 90C On / 85C Off (2 wires) M16 x 1.5 Thread - Price: $94.00
• SKU: TFS156 - Thermo Switch 85C On / 80C Off (2wires) M16 x 1.5 Thread - Price: $98.00
